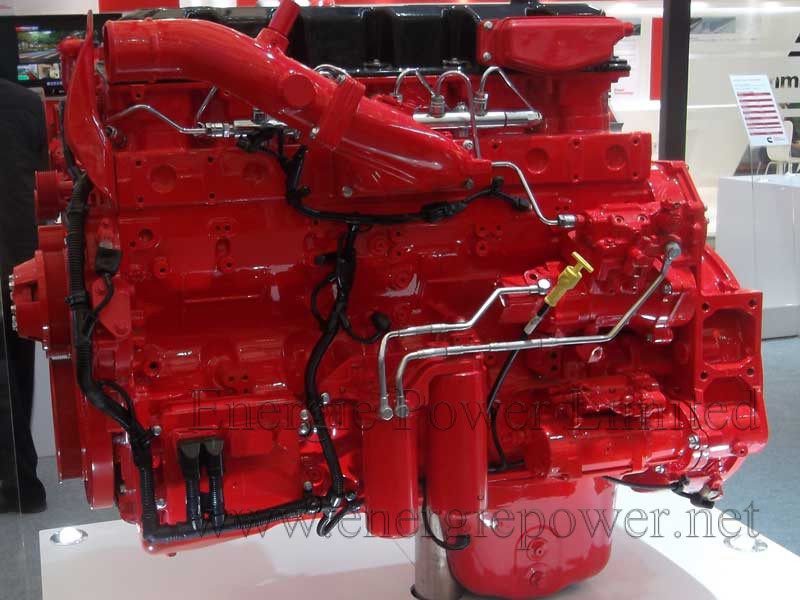

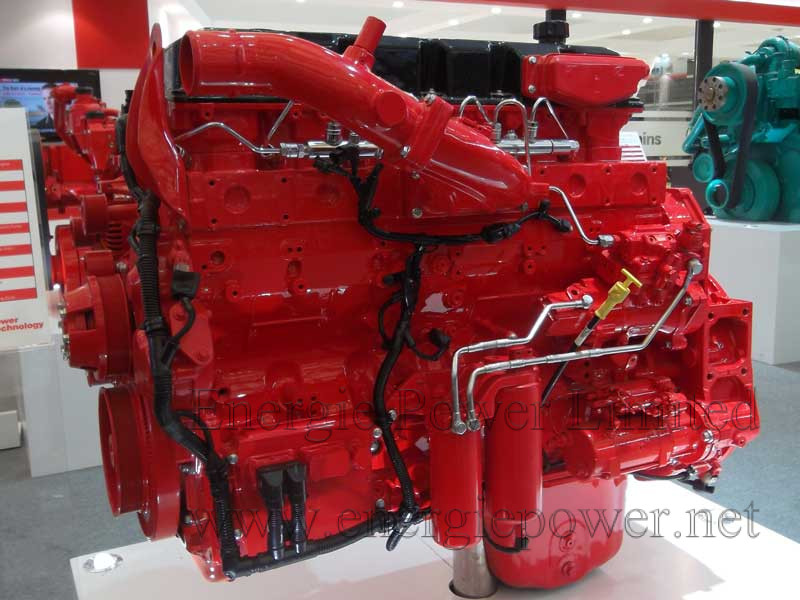

QSZ13-G2
New Cummins Diesel Engines
| Engine Brand | Cummins |
| Engine Models | QSZ13-G2 |
| Rated Power | 400kW/536HP @ 1500 rpm /340kW/456HP @ 1500rpm(Standby Power) |
| Peak Torque | 2547 N.m @ 1500 rpm |
| Fuel Pumping System | HPCR(High Pressure Common Rail) |
| Emission Standard | Tier/Euro III |
| Tail Gas Retreatment | |
| Cummins diesel engine QSZ13-G2 technique specification | |
| Egnine Cylinder Type | 6 Cylinders, Inline |
| Bore and Stroke | 130mm * 163mm |
| Compression Ratio | 17:1 |
| Displacement Type | 13.0 L |
| Fuel Consumption | 70.4L/h(Rated Power) / 58.5L/h(Standby Power) |
| Air Intake Method Type | Turbocharged & Air-air Intercooled |
| Engine Size | 2180mm*1360mm*1605mm |
| Weight Net | 1195Kg |
| Cummins diesel engine QSZ13-G2 trade information | Warranty Time | Basically 1 year or 1500 Hours, please check our warranty terms |
| Delivary Port | Shanghai or any China port |
| Leading Time | 15 working days |
| Trade Termes | FOB/CIF/CNP |
| Payement termes | T/T, L/C |
For all new engine, we have warranty term of 1 year or 1000 hours, which one comes first.
All the engine is complete new engine with all necessary accessories: Alternator, starter, Turbocharger, Fuel Pump, Fuel Transfer pump, Water pump, Lub oil pump and filters.
Yes, We could supply the Power pack according your requirement. For example:
Industrial engine—Radiator, Fan, Muffler, Elbow, air filter, air compressor, PTO ect.
Marine engine—Remote Controller and wiring, Gearbox and Coupling.
G-power Engine—Alternator, Controller system.
Vehicle Engine—PTO, Air Compressor, Fan, Radiator, Power steering pump.
Yes, the engine if we quoted as Genuine engine, means the engine is manufactured by China Cummins Plants(DCEC-Dongfeng Cummins Engine Company, CCEC-Chongqing Cummins Engine Company, BFCEC-Beijing Foton Cummins Engine Company and XCEC-Xi’an Cummins Engine Company, GCEC:Guangxi Cummins Engine Company).
Certificate of Conformity, Operation and Maintenance Manual, Notice and nameplate etc.
Additional files for automobile engine: Rubbing paper for license plate application.
Additional files for marine engine: Certificate CCS/IMO
Yes, normally all the genuine parts are under the warranty from the brand owner, in some cases, we offer a warranty under our own company, but this warranty covers only the goods, not the service.
