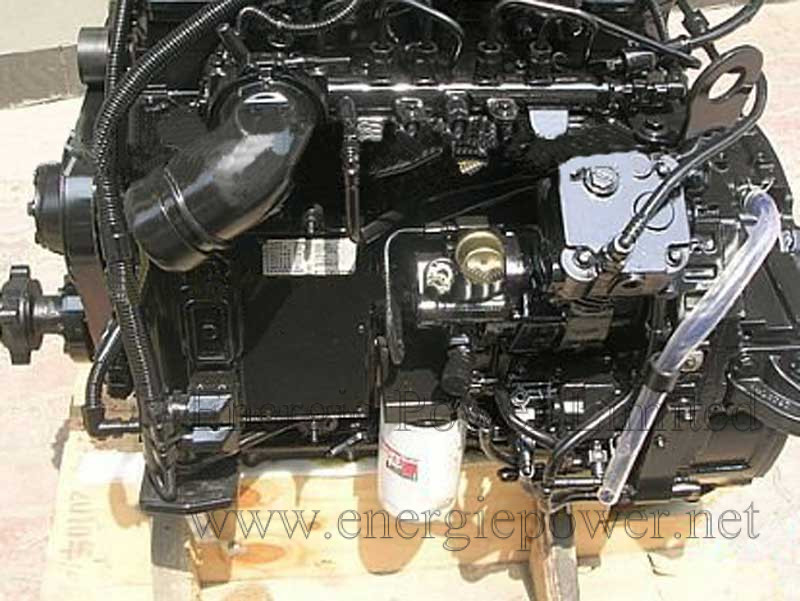

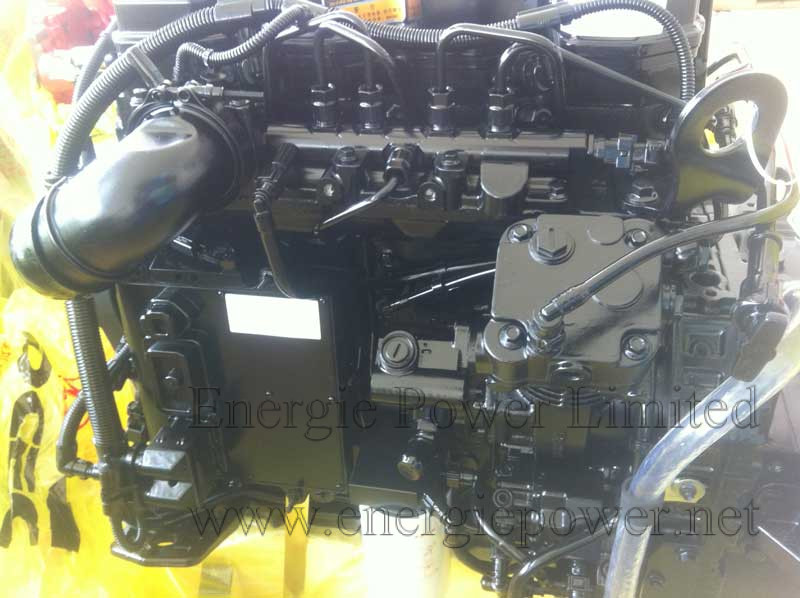

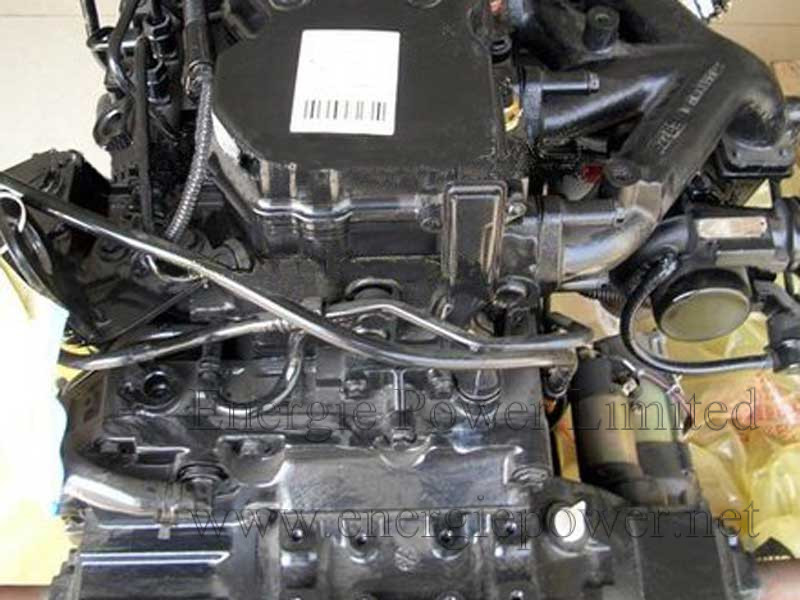

ISDe140-50

New Cummins Diesel Engines

Engine Brand Cummins
Engine Models ISDe140-50
Rated Power 103kW/140HP@2500rpm
Peak Torque 550N.m @ 1100-1600rpm
Fuel Pumping System Bosch  Pump
Emission Standard Tier/Euro V
Tail Gas Retreatment
Cummins diesel engine ISDe140-50 technique specification
Egnine Cylinder Type 4 Cylinders, Inline
Bore and Stroke 107 mm* 124mm
Compression Ratio 17.3: 1
Displacement Type 4.5L
Fuel Consumption 224 g/kW.h
Air Intake Method Type Turbochager&Intercooled
Engine Size 1120mm*870mm*850mm
Weight Net 390 Kg
Cummins diesel engine ISDe140-50 trade information
Warranty Time Basically 1 year or 1500 Hours, please check our warranty terms
Delivary Port Shanghai or any China port
Leading Time 15 working days
Trade Termes FOB/CIF/CNP
Payement termes T/T, L/C
Get A Quotation

For all new engine, we have warranty term of 1 year or 1000 hours, which one comes first.

All the engine is complete new engine with all necessary accessories: Alternator, starter, Turbocharger, Fuel Pump, Fuel Transfer pump, Water pump, Lub oil pump and filters.

Yes, We could supply the Power pack according your requirement. For example:

Industrial engine—Radiator, Fan, Muffler, Elbow, air filter, air compressor, PTO ect.

Marine engine—Remote Controller and wiring, Gearbox and Coupling.

G-power Engine—Alternator, Controller system.

Vehicle Engine—PTO, Air Compressor, Fan, Radiator, Power steering pump.

Yes, the engine if we quoted as Genuine engine, means the engine is manufactured by China Cummins Plants(DCEC-Dongfeng Cummins Engine Company, CCEC-Chongqing Cummins Engine Company, BFCEC-Beijing Foton Cummins Engine Company and XCEC-Xi’an Cummins Engine Company, GCEC:Guangxi Cummins Engine Company).

Certificate of Conformity, Operation and Maintenance Manual, Notice and nameplate etc.

Additional files for automobile engine: Rubbing paper for license plate application.

Additional files for marine engine: Certificate CCS/IMO

Yes, normally all the genuine parts are under the warranty from the brand owner, in some cases, we offer a warranty under our own company, but this warranty covers only the goods, not the service.
